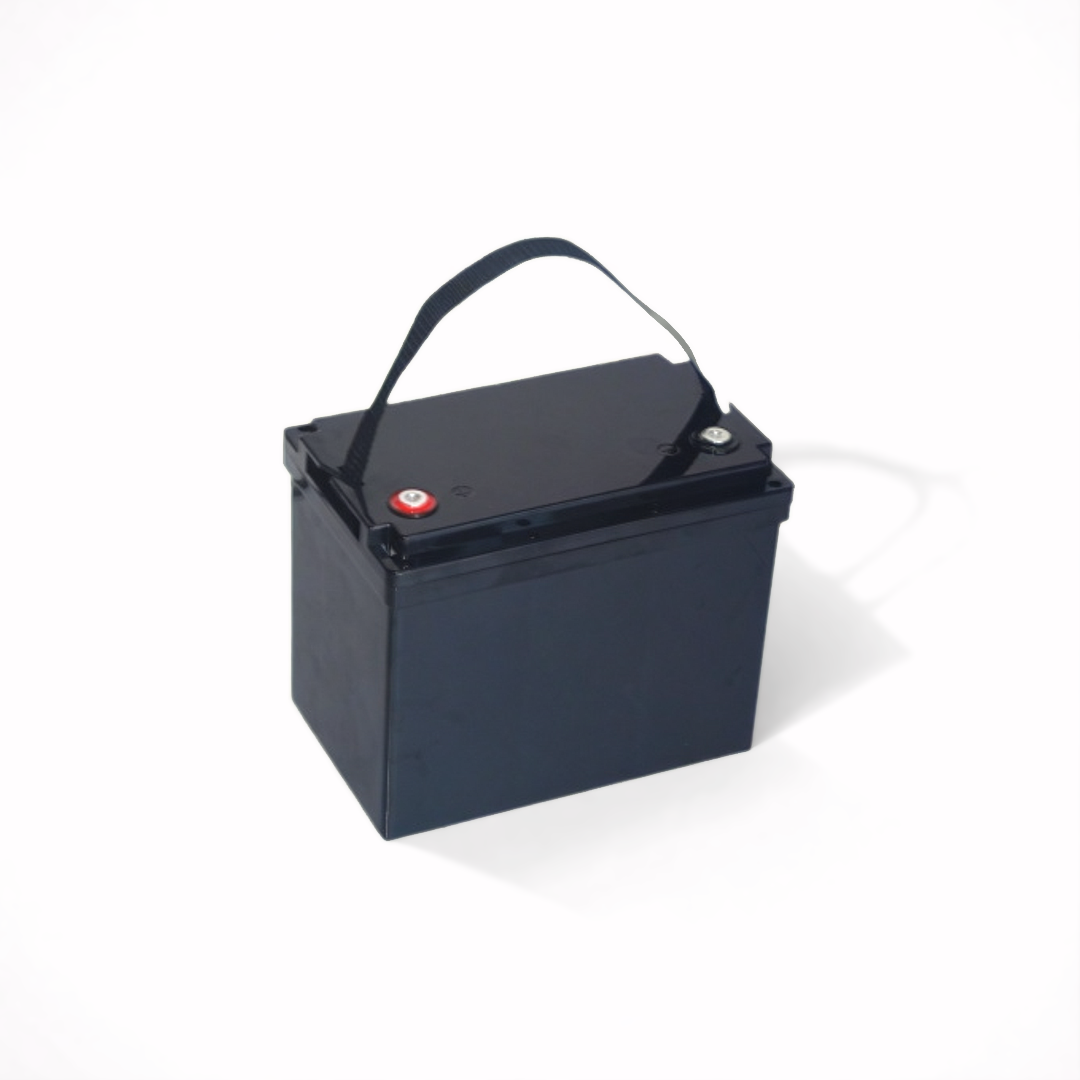

The Main features of ELB 12V 100Ah Heated Lithium Battery:
Built-in self-heating system, When the environment is cold lower to -20°C, battery still can work well as charging and discharging function. ideal for industrial purposes where you need a long lifespan battery that charges quickly, or for winner uses that low temperature weather is at a premium.
This 12v 100ah heated battery is a LiFePO4 lithium chemistry. Which offer BMS controlled safety, long life,fast-charging performance, also the BMS embeds smart balancing algorithms that control all cell voltages in the battery, making sure they are constantly at the same voltage level, optimizing battery capacity.
Built-in high accurate LiFePO4 production technology, which can extremely expend the cycle to 4000times@80%DOD.
| ELECTRICAL SPECIFICATION | |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100AH |
| Stored Energy | 1280Wh |
| Resistance | 60 mΩ |
| Self Discharge Rate | <3% per Month |
| Maximum Continous Charge Current | 100A |
| Maximum Continous Discharge Current | 100A |
| Charge Cut-off Voltage | 15.6 V |
| Discharge Cut-off Voltage | 10V |
| Cycle life(25°C) | >4000 times@80%DOD |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (mm) | L330×W170×H216 |
| Weight | 11kg |
| Terminal Type | M8 |
| Case Material | ABS |
| Enclosure protection | IP64 |
| TEMPERATURE SPECIFICATIONS | |
| Discharge Temperature | -20 to 55°C |
| Charge Temperature | -20 to 55 °C |
| Storage Temperature | -20 to 60 °C |
| OTHERS SPECIFICATIONS | |
| Short Circuit Protection | Automatically recover after removal of short |
| Life Expectancy (years) | 10 years at one cycle per day |
