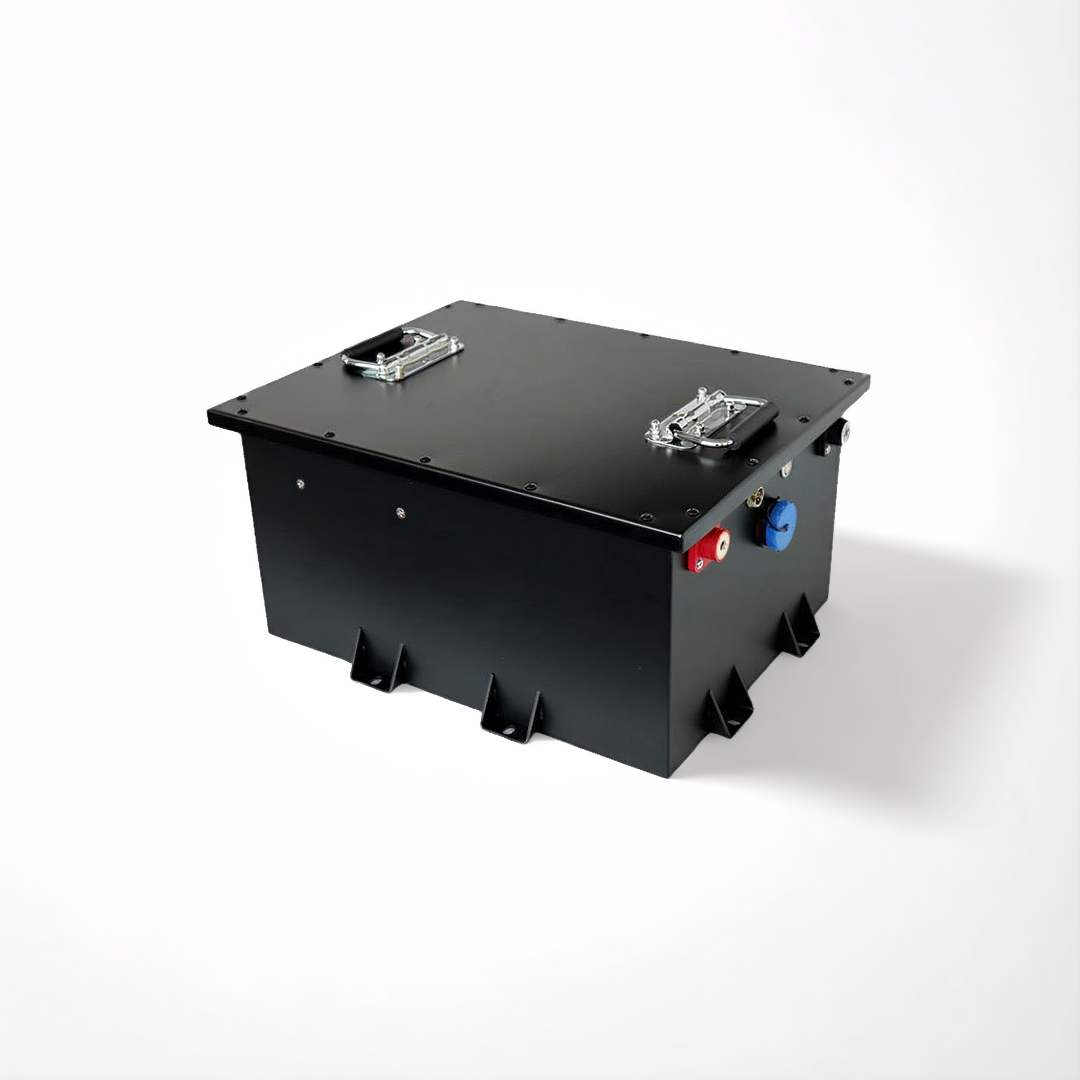

This 51.2V 60Ah LiFePO4 Battery are specially designed for Golf Carts, and the batteries offer Smart BMS controlled safety, long life,fast-charging performance, also the BMS embeds smart balancing algorithms that control all cell voltages, making sure they are constantly at the same voltage level, optimizing battery capacity.
| ELECTRICAL SPECIFICATION | |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 60AH |
| Stored Energy | 3072Wh |
| Resistance | 30 mΩ |
| Self Discharge Rate | <3% per Month |
| Maximum Continous Charge Current | 60A |
| Maximum Continous Discharge Current | 60A |
| Charge Cut-off Voltage | 40V |
| Discharge Cut-off Voltage | 58.4V |
| Cycle life(25°C) | >4000 times@80%DOD |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (mm) | L420*W330*H210 |
| Weight | 40kg |
| Protection Level | IP67 |
| Case Material | Commercial Grade Steel |
| Communication Protocol | RS485/ CAN |
| TEMPERATURE SPECIFICATIONS | |
| Discharge Temperature | -20 to 55°C |
| Charge Temperature | 0 to 50 °C |
| Storage Temperature | -20 to 60 °C |
| OTHERS SPECIFICATIONS | |
| Short Circuit Protection | Automatically recover after removal of short |
| Life Expectancy (years) | 10 years at one cycle per day |
